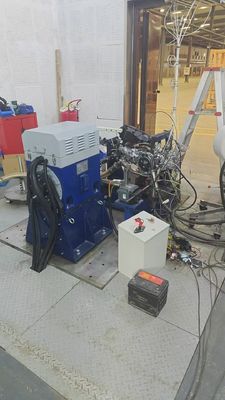

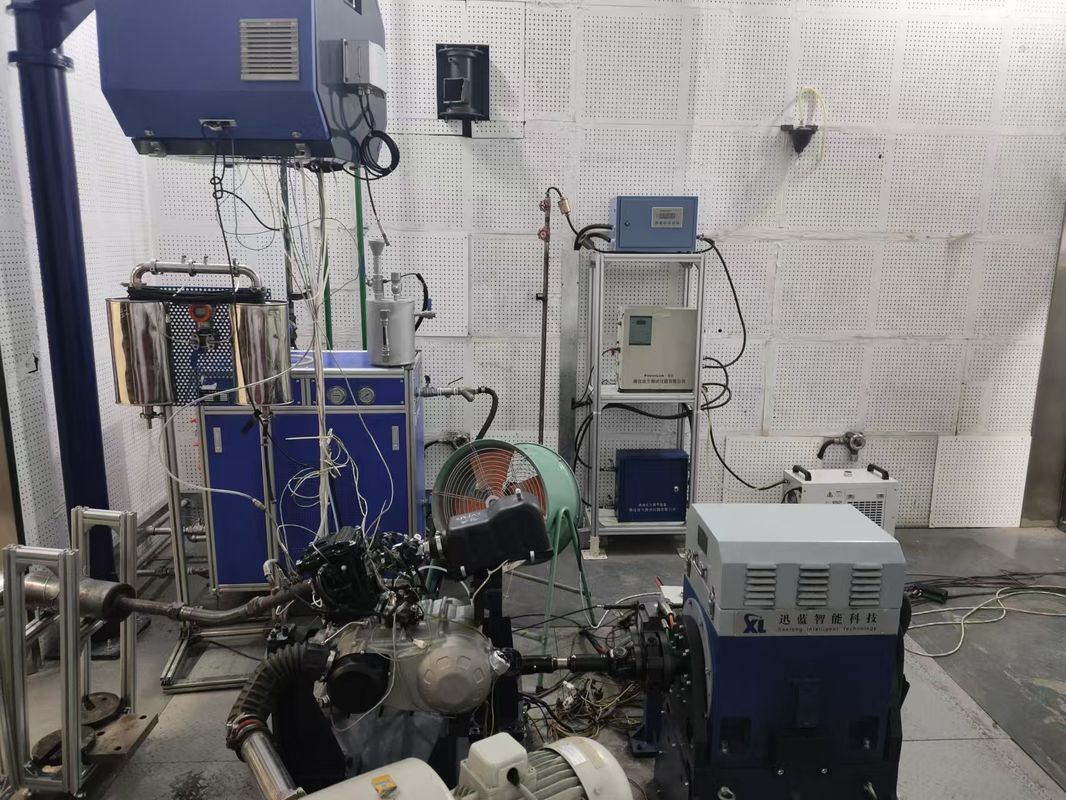

132kW 0.05%FS Measurement Accuracy Gasoline Engine Electric Dynamometer Test Bench System
Product Specifications
| Attribute |
Value |
| Rated Power |
132kW |
| Rated Torque |
420Nm |
| Max Speed |
9000rpm |
| Rated speed |
3000rpm |
| Torque Measurement Accuracy |
0.05%FS |
| Overload capacity |
120% |
| Service temperature |
-40 to 60℃ |
| Use altitude |
<2000m |
| Rated frequency |
50Hz |
| Speed Measurement Accuracy |
±1rpm |
System Overview
The SSCG132-3000-9000 132kW Gasoline Engine Electric Dynamometer Test Bench System is high-performance power testing equipment that utilizes advanced energy feedback technology to simulate complex and variable real-world operating conditions, enabling precise testing and evaluation of gasoline engine performance.
Factory Installation Requirements
| Parameter |
Value |
Parameter |
Value |
| Altitude |
Less than 1000 meters |
Factory humidity |
≤ 80% |
| Foundation thickness |
＞180mm |
Factory temperature |
5 °C～40°C |
| Factory floor bearing capacity |
3t/㎡ |
Power supply |
380V ± 10 % three-phase 50Hz |
Reference Standards
- GB/T 18297-2024 "Performance test code for road vehicle engines" - Details test procedures and data processing methods for engine power, torque, fuel consumption, and other performance parameters.
- GB/T 19055-2024 "Reliability test methods for motor vehicle engines" - Defines test condition settings, operating procedure specifications, and performance evaluation criteria for engine reliability testing.
System Components

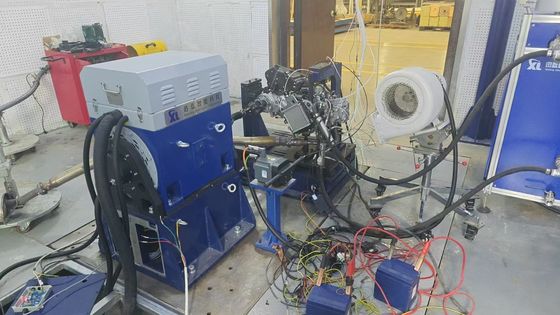

- Electric dynamometer: Consists of an AC motor, mounting bracket, and German HBM T40B series torque flange for accurate torque measurement and loading/dragging operations.

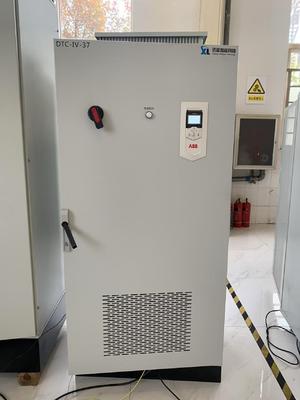

- ABB ACS880 variable frequency inverter system: Controls the electric dynamometer and feeds generated electrical energy back to the power grid.

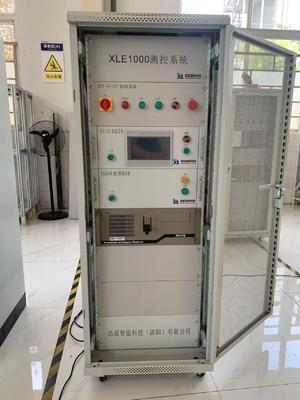

- XLE-1000 measurement and control system and software: Provides overall test bench control, condition setting, and automated test processes.
- Data acquisition system: Collects and processes engine parameters through temperature and pressure sensors.
- Motor-type throttle actuator: Adjusts throttle openings for dynamic engine tests.
- Transient fuel consumption meter and fuel boost/pressure regulating device: Measures fuel consumption and ensures stable fuel pressure.
- Coolant temperature control device: Precisely controls engine coolant temperature.
Technical Parameters
| Parameter Category |
Technical Indicators |
| Rated power |
132kW |
| Rated torque |
420Nm |
| Constant torque measurement range |
0-3000rpm |
| Constant speed measurement range |
3000-9000rpm |
| Torque measurement range |
0-420Nm |
| Torque measurement accuracy |
± 0.15%FS |
| Dynamic response time |
≤ 80ms |
| Energy feedback efficiency |
≥ 97% |
| Operating voltage |
AC 380V ±10% |
| Frequency |
50Hz |
Core Advantages
- High compatibility: Seamlessly connects with engine controllers and user-owned devices without additional modifications.
- Fully automatic testing: Preset programs automatically adjust throttle and load parameters to complete condition simulation.
Model List
| Model |
Power (KW) |
Torque (Nm) |
Rated Speed (rpm) |
Max Speed (rpm) |
Torque Measurement Accuracy |
| SSCG30-3000/10000 |
30 |
95 |
3000 |
10000 |
0.2%FS |
| SSCG45-3000/10000 |
45 |
143 |
3000 |
10000 |
0.2%FS |
| SSCG60-3000/10000 |
60 |
191 |
3000 |
10000 |
0.2%FS |
| SSCG90-3000/10000 |
90 |
286 |
3000 |
10000 |
0.2%FS |
| SSCG110-3000/10000 |
110 |
350 |
3000 |
10000 |
0.2%FS |
| SSCG160-3000/10000 |
160 |
509 |
3000 |
10000 |
0.2%FS |
| SSCG200-3000/8000 |
200 |
637 |
3000 |
8000 |
0.2%FS |
| SSCG250-3000/8000 |
250 |
796 |
3000 |
8000 |
0.2%FS |
| SSCG300-3000/7500 |
300 |
955 |
3000 |
7500 |
0.2%FS |
| SSCG350-3000/7500 |
350 |
1114 |
3000 |
7500 |
0.2%FS |
| SSCG400-3000/7500 |
400 |
1273 |
3000 |
7500 |
0.2%FS |
| Can be customized |
Application Areas
- Research and development of high-performance automobile engines: Simulates high-speed and high-load conditions to test power, fuel consumption, and emissions.
- Aviation ground support equipment power test: Ensures reliable operation in harsh environments.
- Development of special vehicle power systems: Evaluates engine performance under complex terrain and weather conditions.
- Performance testing of small power generation equipment: Tests engine power, frequency, and voltage regulation accuracy.
Trade Show
From October 24th to 26th, 2024, Seelong Intelligent Technology participated in the Russian International Testing and Control Exhibition at the Moscow Klokus International Convention and Exhibition Center, showcasing engine test benches and transmission test benches to the Russian market.
